Stainless Steel Rope Mesh with Ferrules the Ideal Zoo Mesh Alternative

A tiger in stainless steel rope mesh enclosure in the zoo.
SRMF-1: Rope mesh tiger enclosure.

Stainless steel rope mesh with ferrules has the same function as the one of plain weave. Ferrule is also made of the same material as the rope. It connects the two neighboring ropes and forms diamond opening. Stainless steel 304 and 316 are available.

Advantages:

  • Huge strength to stand up with huge impacts.
  • Excellent rust-resistance.
  • Recyclable and durable.

Applications:

  • Zoo wire mesh - parrot aviary, lion enclosure, leopard cage;
  • Bridge balustrades, large barrier fences;
  • Building decoration.
Stainless steel rope mesh with diamond aperture.
SRMF-2: Stainless steel rope mesh is connected by ferrule forming diamond opening.
A big aviary for large birds is composed of stainless steel rope mesh with ferrules for added strength and reliability.
SRMF-3: Stainless steel rope mesh with ferrules is also perfect for creating a stable aviary for large birds.

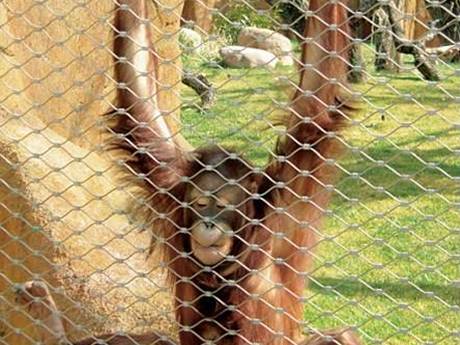

A monkey is playing with stainless steel rope mesh in the zoo.
SRMF-4: Stainless steel rope mesh with ferrules is very solid and monkey like to climb it for fun.
Stainless steel rope with ferrule as decorative bridge fencing.
SRMF-5: Stainless steel rope with ferrule has beautiful diamond aperture and won't be affected by all weathers.
Stainless Steel Rope Mesh with Ferrule
Item No. Rope Diameter Mesh Opening Size (W × H) Normal Break
inch mm inch mm lbs.
STF200 1/8 3.2 4.75 × 8.23 120 × 207.8 1,600
STF201 1/8 3.2 4 × 6.9 102 × 176.7 1,600
STF202 1/8 3.2 3.55 × 6.15 90 × 156 1,600
STF203 1/8 3.2 3 × 5.2 76 × 131.6 1,600
STF204 1/8 3.2 2 × 3.46 51 × 88.3 1,600
STF205 3/32 2.4 4 × 6.9 102 × 176.7 920
STF206 3/32 2.4 3.55 × 6.15 90 × 156 920
STF207 3/32 2.4 3 × 5.2 76 × 131.6 920
STF208 3/32 2.4 2.4 × 4.16 60 × 104 920
STF209 3/32 2.4 2 × 3.46 51 × 88.3 920
STF210 5/64 2.0 3 × 5.2 76 × 131.6 676
STF211 5/64 2.0 2.4 × 4.16 60 × 104 676
STF212 5/64 2.0 2 × 3.46 51 × 88.3 676
STF213 5/64 2.0 1-1/2 × 2.6 38 × 65.8 676
STF214 1/16 1.6 1.2 × 2.08 76 × 131.6 480
STF215 1/16 1.6 2 × 3.46 51 × 88.3 480
STF216 1/16 1.6 1-1/2 × 2.6 38 × 65.8 480
STF217 1/16 1.6 1.2 × 2.08 30 × 52 480
STF218 1/16 1.6 1 × 1.73 25.4 × 44 480
STF219 3/64 1.2 1-1/2 × 2.6 38 × 65.8 270
STF220 3/64 1.2 1.2 × 2.08 30 × 52 270
STF221 3/64 1.2 1 × 1.73 25.4 × 44 270
STF222 3/64 1.2 4/5 × 1.39 20 × 34.6 270

Hot specifications ordered by customers:

  1. Stainless steel rope mesh with ferrules, main cable (in red): 15 to 20 mm diameter stainless cables, boundary cable: 10 mm, opening size: 38 mm × 38 mm, inner mesh wire: 1.6 mm.
  2. Stainless steel rope mesh with ferrule a panel: 8' width × 12' length, 2.4 mm rope diameter.
  3. 50 × 50 mm mesh opening size and 3 mm wire diameter, stainless steel rope mesh with ferrules.
  4. 1.5 mm wire diameter, 30 mm × 30 mm hole size and diamond opening rope mesh with ferrules.
  5. Rope mesh with ferrules, material: SS304, 2 mm wire, 5 cm opening.
  6. Material: SS304, 1.5 mm wire diameter, 5 cm opening, rope mesh with ferrules.
  7. Stainless steel rope mesh is connected by ferrule forming diamond opening, 1.6 mm rope diameter, 25.4 × 44 mm mesh opening size, 150 m2 width is 1.5 m, length is 100 m.
  8. Stainless steel rope mesh with ferrules, material: AISI316, height: 700 mm, total length: 30 meters, mesh dimensions: 200 × 120, wire rope thickness: 3 mm.
  9. 8' × 12' stainless steel rope mesh with ferrule, 1.2 mm wire diameter with diamond opening.
